Power Battery Packs Crush Testing Machine 100 Ton Battery Testing Equipment

Name: Power Battery Packs Crush Testing Machine 100 Ton Battery Testing Equipment
Brand: Gaoxin
Price: 1 USD

China Power Battery Packs Crush Testing Machine 100 Ton Battery Testing Equipment wholesale

Brand Name : Gaoxin

Model Number : GX-5076-A

Certification : CE

Place of Origin : China

MOQ : 1set

Price : negotiation

Payment Terms : FOB Shenzhen, L/C, T/T, Western Union

Supply Ability : 50 sets per month

Delivery Time : 15 working days

Packaging Details : Non-fumigation wooden box

Product Name : Battery Crush testing machine

application : battery packs, cell battery

drive : Hydraulic drive

Standards : UL2580 SAND99-0497

Contact Now

Hydraulic drive 100 Ton Vertical Type Battery Testing Equipment , Power Battery Packs Crush Testing Machine

3.Features

a. Power Battery Crush Testing Machine is to check safety capability of battery after suffering crushed.

b. Hydraulic drive

c. It is easy to operate.

4.Specifications

Model	GX-5076-A
Drive mode	Hydraulic drive
Pressure range	100T
Force sensor	High accuracy pressure sensor display on computer
Unit exchange	Kgf, lbf, N, kN, Kpa, Mpa
Displacement resolution	0.05mm
Frequency of data sampling	200 times/s
Accuracy of pressure	±10.0kg
Resolution	1/10,000
Working space	50×50×50cm
Framework stroke	500MM
Observing window	Two-layer visible explosion proof glasses
Exhausting mode	Exhausting air fan in the back of chamber
Material	A3 steel sheet with baking finish
Power	AC380V 50-60HZ, 15A

For detail information please contact with us.

Power Battery Packs Crush Testing Machine 100 Ton Battery Testing Equipment

1.How can we guarantee quality?
 Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.

 2.What can you buy from us?
 Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,environmental test chamber, paper testing machine etc.

 3.What details are required for a quotation?
 What is the test standard
 What product or material testing from this machine
 What is the Test object size
 What is you want the machine appropriate size

 4.Can I make changes before I ship?
 No,it can not change if machine finished

 5.When will my order ship?
 Need 10-45 workdays base on which type the the machine

 6.How can I track my order?
 We will send the schedule by each stage

Product Tags:

battery test equipment

battery testing instruments

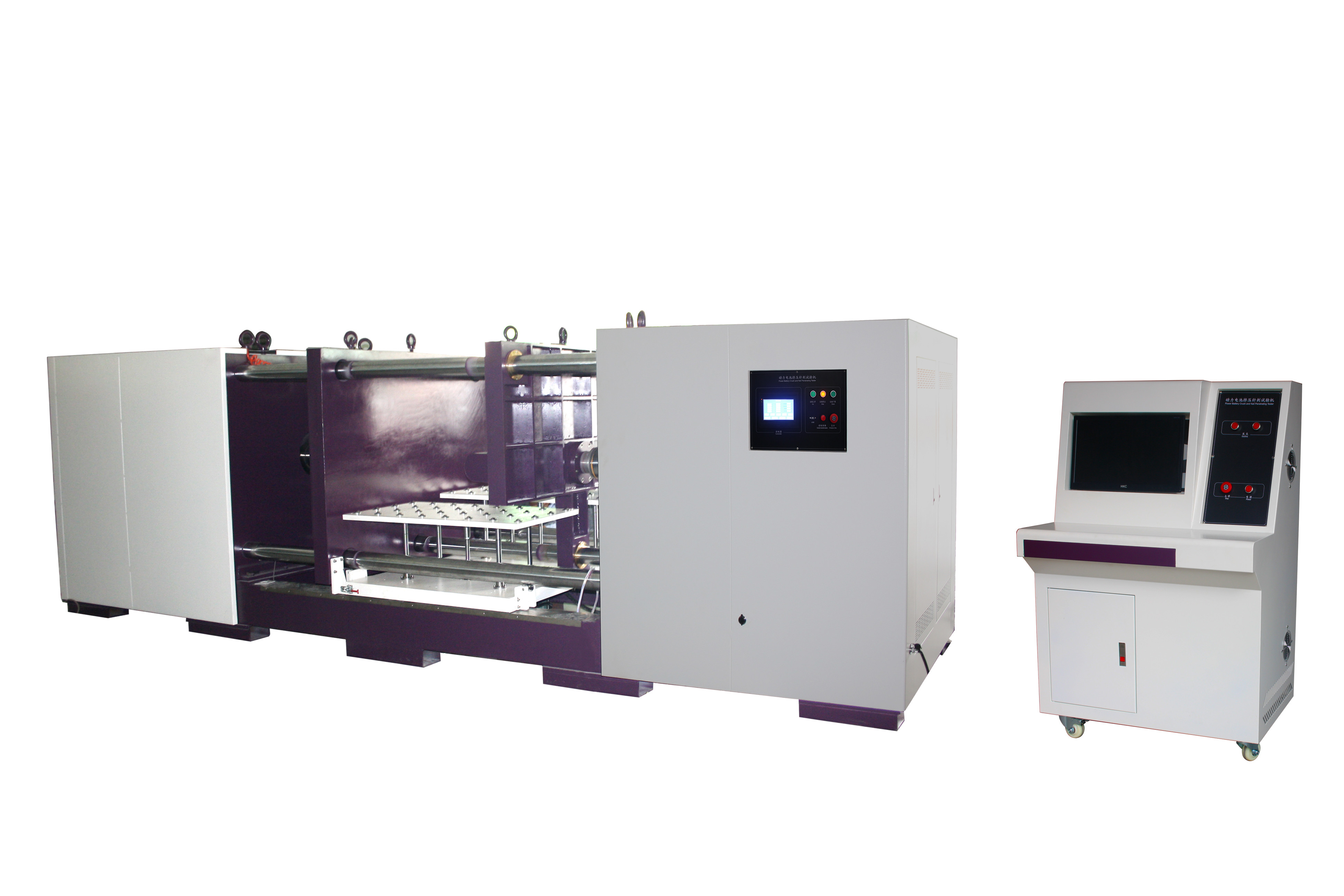

Power Battery Packs Crush Testing Machine 100 Ton Battery Testing Equipment Images
